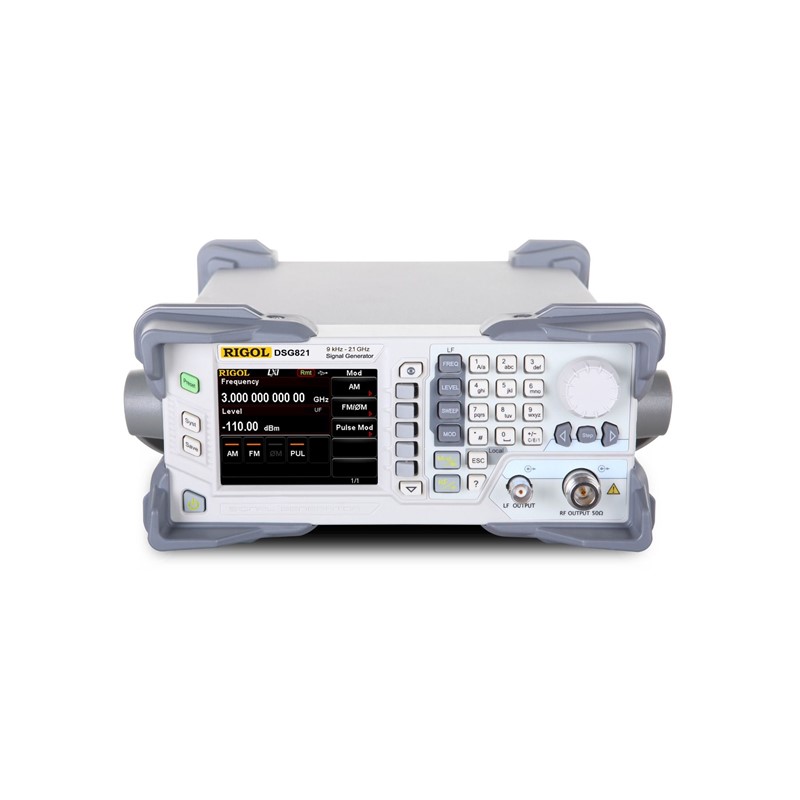

Генератор сигналов RF Rigol DSG821
374 220 руб.
Последняя цена (на момент наличия)
- Производитель: Rigol
- Модель: DSG821
- Наличие: По запросу
- Up to 2.1 GHz frequency
- The typical value of amplitude precision is not greater than 0.5 dB
- -110 dBm to +20 dBm output power
- High signal purity; the typical value of phase noise is lower than -112dBc/Hz@20kHz
- Provide 2 ppm internal clock (standard) as well as an optional 5 ppb highly stable clock
- Provide AM/FM/ØM analog modulation functions (standard)
- Provide optional pulse modulation with up to 70 dB on/off ratio; it also provides optional pulse train generator
- All the modulation functions support both internal and external modulation modes
- It is designed with a height of 2U which saves the rack space; it also provides the rack mount kit
- Provide USB/LAN remote control interfaces (standard) and standard SCPIcommand set
- Provide the system flatness calibration (cable, attenuator, amplifier and etc.) function
